Waterproof cooler bag performance is determined by the complete interaction between material selection, multi-layer construction, manufacturing processes and quality control. For professional buyers and product developers, preventing leakage is not achieved only by selecting a waterproof fabric. A reliable cooler bag requires coordinated design between the outer protective layer, insulation system, inner lining, zipper structure and seam construction.
Modern cooler bags commonly combine coated textile materials, thermal insulation layers and waterproof internal barriers to achieve both temperature retention and moisture protection. This article evaluates the engineering relationship between material structure, manufacturing technology, testing methods and OEM development requirements for waterproof cooler bag production.

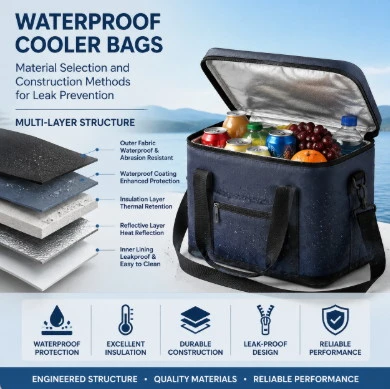

Understanding Waterproof Cooler Bag Materials and Multi-Layer Component Structure
A waterproof cooler bag is manufactured as a functional multi-layer textile system. Each layer performs a different role, and final performance depends on how these materials are combined. The external layer protects against abrasion and environmental exposure, the insulation layer controls heat transfer, and the internal lining helps prevent liquid leakage from melted ice or condensation.
A typical waterproof cooler bag structure includes:
- outer fabric layer for abrasion resistance and appearance protection
- waterproof coating or laminated barrier for moisture resistance
- thermal insulation layer for reducing heat transfer
- inner waterproof lining for leakage control and easy cleaning
- reinforced components for handles, corners and stress areas
- zipper and closure systems designed according to application requirements
- PVC Coated Polyester Fabric: The Common Waterproof Outer Structure
PVC coated polyester fabric is one of the most widely used waterproof materials for commercial cooler bags. This structure combines polyester textile strength with a continuous PVC polymer coating layer. The polyester substrate provides mechanical durability, while the PVC coating reduces water penetration and improves surface cleaning performance.
A typical structure is:
Polyester Textile Substrate
↓
PVC Coating Layer
↓
Insulation Layer
↓
Inner Waterproof Lining
For example, the PVC waterproof insulated lunch bag uses this type of waterproof construction concept, combining external moisture protection with thermal insulation and internal storage protection.
| Material Structure | Typical Specification | Waterproof Function | Application Suitability |
|---|---|---|---|
| PVC Coated Polyester | 300D-600D polyester with PVC coating | Surface water resistance and abrasion protection | Daily cooler bags, lunch bags, promotional products |
| PVC Laminated Fabric | Polyester + PVC film layer | Higher waterproof barrier performance | Outdoor cooler applications requiring stronger moisture protection |
| TPU Laminated Fabric | Textile substrate + TPU film | Flexible waterproof protection and improved low-temperature performance | Premium outdoor cooler solutions |
| PEVA Lining | 0.15-0.50 mm waterproof lining | Internal leakage prevention and easy cleaning | Food and beverage storage applications |
PVC Laminated Fabric and TPU Laminated Fabric Waterproof Solutions
Besides PVC coating, some cooler bag applications use laminated waterproof fabrics. Lamination creates a separate polymer film layer bonded to the textile substrate, forming a more continuous moisture barrier.
PVC laminated fabrics provide strong waterproof protection and are commonly selected for outdoor-oriented cooler bags. TPU laminated fabrics provide improved flexibility, softer hand feel and better performance under lower temperatures, making them suitable for higher-end functional products.
| Waterproof Material | Structure | Engineering Characteristics | Typical Application |
|---|---|---|---|
| PVC Coating | Polymer coating applied on textile surface | Cost-effective waterproof protection and easy maintenance | Commercial cooler bags |
| PVC Lamination | PVC film bonded with textile | Higher barrier consistency | Outdoor and heavy-use cooler bags |
| TPU Lamination | TPU film bonded with textile | Flexible, durable and temperature-resistant structure | Premium outdoor applications |
Inner Waterproof Lining and Thermal Barrier Components
The internal structure of a cooler bag is equally important for leak prevention. PEVA lining is widely used because it provides a smooth waterproof surface that helps contain melted ice and moisture while allowing easier cleaning.
Many insulated cooler bags also combine aluminum foil layers with foam insulation. The reflective surface reduces radiant heat transfer while foam materials reduce conductive heat exchange.
| Component | Typical Specification | Functional Purpose |
|---|---|---|
| EPE Foam Insulation | 2-10 mm thickness | Reduces heat conduction through closed-cell foam structure |
| EVA Foam Insulation | 3-15 mm thickness | Provides higher density insulation and structural support |
| Aluminum Foil Layer | Reflective laminated film | Reduces radiant heat transfer |
| PEVA Lining | 0.15-0.50 mm thickness | Provides internal waterproof protection and cleaning convenience |
How Waterproof Cooler Bag Construction Technology Prevents Water Leakage and Thermal Loss
Material selection determines the potential performance of a waterproof cooler bag, but manufacturing technology determines whether that potential can be achieved in the finished product. During production, cutting accuracy, layer alignment, stitching quality, reinforcement methods and waterproof processing directly influence leakage resistance and thermal retention performance.
A professional cooler bag manufacturing process follows a controlled pathway from material inspection to final quality verification. Each production stage affects the final structure, including waterproof protection, insulation stability and product durability.
Stage 1: Material Preparation and Component Inspection
Before production begins, all materials are inspected according to approved specifications. The purpose is to verify that fabrics, coatings, insulation layers and accessories meet the required performance targets.
- outer fabric GSM and denier verification
- PVC coating or lamination surface inspection
- insulation thickness measurement
- PEVA lining quality inspection
- color consistency verification
- zipper and hardware component inspection
For waterproof cooler bags, inconsistent coating thickness or insulation variation can create differences in waterproof performance and thermal retention between production batches.
Stage 2: Pattern Design and Precision Cutting
Pattern design determines how different layers are assembled and how mechanical stress is distributed throughout the product. Accurate cutting is especially important for multi-layer cooler bag structures because outer fabric, insulation and lining must maintain correct alignment.
| Production Parameter | Typical Control Method | Impact on Product Performance |
|---|---|---|
| Panel Dimension | Measurement against approved pattern specification | Ensures correct assembly and insulation positioning |
| Seam Allowance | Controlled during cutting process | Affects seam strength and leakage resistance |
| Layer Alignment | Manual or production fixture control | Prevents insulation gaps and structural deformation |
Stage 3: Sewing Assembly and Reinforcement Construction
Most commercial cooler bags use sewing technology for assembly. However, stitching creates potential water penetration points because needle holes can interrupt waterproof barriers. Therefore, seam design and reinforcement methods are important factors in leak prevention.
Common construction methods include:
- reinforced stitching at handle attachment points
- binding tape around fabric edges
- double stitching at high-stress areas
- reinforced bottom panels
- zipper protection flaps
Stage 4: Waterproof Processing and Thermal Structure Assembly
Waterproof cooler bag manufacturing may include additional functional processes depending on application requirements. These processes improve resistance against moisture penetration and maintain insulation performance.
- PVC coating application for surface waterproof protection
- PVC or TPU lamination for additional barrier layers
- heat sealing for selected waterproof structures
- insulation layer bonding and positioning
- inner lining assembly for leakage control
Stage 5: Final Quality Inspection and Production Verification
Before bulk shipment, finished cooler bags should be evaluated through appearance inspection, dimensional verification and functional testing. The purpose is to confirm that the manufactured product matches approved samples and technical specifications.
| Inspection Item | Testing Method | Evaluation Purpose |
|---|---|---|
| Appearance Inspection | Visual inspection under controlled conditions | Checks sewing quality, surface defects and workmanship |
| Dimensional Inspection | Measurement against approved specifications | Confirms production consistency |
| Water Leakage Evaluation | Controlled water exposure testing | Verifies waterproof structure performance |
| Thermal Performance Test | Temperature change monitoring under defined conditions | Evaluates insulation effectiveness |
Waterproof Construction Mechanism: Material + Structure + Process
A waterproof cooler bag achieves leak prevention through a combined engineering system rather than a single waterproof material.
The relationship can be described as:
Waterproof Material Selection
↓
Layer Structure Design
↓
Seam and Component Control
↓
Manufacturing Process Accuracy
↓
Finished Product Waterproof Performance
This approach is especially important for OEM projects because different markets may require different combinations of waterproof protection, insulation performance, weight control and production cost.
How Insulation Layer Structure and Waterproof Barriers Determine Cooler Bag Performance
The performance of a cooler bag depends on the interaction between insulation materials and waterproof barriers. The insulation system reduces heat transfer, while waterproof layers protect the internal environment from external moisture and prevent leakage from melted ice or condensation.
Professional evaluation of cooler bags requires analyzing insulation thickness, material density, lining structure and waterproof construction together rather than evaluating one parameter separately.
Thermal Protection Through Multi-Layer Structure
Cooler bags control heat transfer through three main mechanisms:
| Heat Transfer Mechanism | Structural Solution | Engineering Effect |
|---|---|---|
| Conduction | EPE/EVA foam insulation layer | Reduces direct heat transfer through material contact |
| Radiation | Aluminum foil reflective layer | Reduces radiant heat exchange |
| Convection | Closed-cell insulation and sealed structure | Limits air movement and temperature change |
Insulation Thickness and Thermal Performance Evaluation
Insulation thickness is an important parameter in cooler bag development, but it should be evaluated together with insulation material density, internal lining structure and product application requirements. Increasing thickness may improve thermal resistance, but it also affects product weight, folding performance and transportation cost.
| Insulation Structure | Typical Thickness | Performance Characteristics | Application Example |
|---|---|---|---|
| Single EPE Foam Layer | 2-5 mm | Lightweight structure with moderate thermal protection | Lunch bags and promotional cooler products |
| EPE/EVA Composite Insulation | 5-10 mm | Improved thermal resistance and structural support | Daily-use insulated cooler bags |
| Thicker Multi-Layer Foam Structure | 10-20 mm | Higher thermal barrier performance | Food delivery and outdoor applications |
Waterproof Barrier Structure and Internal Leakage Prevention
Waterproof cooler bag performance requires protection from both external moisture and internal liquid leakage. External waterproof layers protect the product from rain, splashes and environmental exposure, while internal waterproof linings prevent melted ice or liquid from leaking through the bag structure.
A complete waterproof system normally includes:
- outer PVC coated or laminated fabric layer
- water-resistant insulation assembly
- PEVA or waterproof inner lining
- controlled seam construction
- protected zipper opening structure
Comparing Waterproof Cooler Bag Materials and Construction Solutions for Different Applications
Different cooler bag applications require different combinations of waterproof materials, insulation systems and structural reinforcement. Professional buyers should evaluate the complete product architecture rather than selecting materials based on a single specification.
| Material / Structure | Specification | Performance Difference | Application Suitability |
|---|---|---|---|
| 600D Polyester + PVC Coating + PEVA Lining | 600D fabric, PVC surface coating, foam insulation | Balanced waterproof protection, durability and cost efficiency | Lunch bags, promotional cooler bags, retail products |
| PVC Laminated Fabric + Reinforced Construction | Textile substrate with PVC film barrier | Higher moisture resistance and easier surface cleaning | Outdoor cooler bags and heavy-use applications |
| TPU Laminated Fabric Structure | Textile substrate bonded with TPU film | Flexible waterproof performance and improved low-temperature behavior | Premium outdoor cooler products |
| Nylon Fabric + Waterproof Coating | High-density nylon textile with protective coating | Higher abrasion resistance and mechanical strength | Outdoor and long-service-life applications |
Material Selection Based on Application Requirements
| Application Requirement | Performance Target | Recommended Structure | Reason |
|---|---|---|---|
| Food Delivery | Thermal retention, frequent cleaning and durability | PVC coated polyester + PEVA lining + thicker insulation | Provides moisture protection and temperature control |
| Outdoor Camping | Abrasion resistance and environmental durability | Nylon/polyester with waterproof coating | Handles repeated outdoor exposure |
| Grocery Transportation | Capacity and carrying reliability | Reinforced bottom and handle structure | Supports repeated loading conditions |
| Premium Cooler Products | Higher waterproof performance and appearance quality | TPU laminated fabric structure | Provides flexible waterproof protection |
Engineering Relationship Between Material Structure and Application Performance
The correct cooler bag material combination is selected according to the required performance target:
Application Requirement
↓
Performance Target
↓
Material and Structure Selection
↓
Finished Product Evaluation
For example, a food delivery cooler bag requires strong thermal retention and easy cleaning, while an outdoor cooler bag may require higher abrasion resistance and waterproof capability. Therefore, different applications require different balances between fabric durability, insulation thickness and waterproof protection.
How Fabric Structure and Reinforcement Design Influence Waterproof Cooler Bag Durability Performance
The long-term durability of a waterproof cooler bag depends on textile structure, reinforcement design and manufacturing consistency. Even when waterproof materials are correctly selected, weak fabric construction or insufficient reinforcement can reduce product lifespan during repeated use.
Fabric Parameters Affecting Cooler Bag Durabilit
| Parameter | Testing Method | Typical Engineering Range | Buyer Evaluation Meaning |
|---|---|---|---|
| Fabric Weight (GSM) | ASTM D3776 fabric weight test | 150-400 GSM depending on construction | Higher fabric weight generally indicates denser textile structure |
| Yarn Denier | Yarn linear density measurement | 300D-840D commonly used | Higher denier improves resistance against abrasion and tearing |
| Tensile Strength | ASTM D5034 / ISO 13934 testing | Measured in N | Evaluates fabric resistance against pulling force |
| Abrasion Resistance | Martindale or equivalent abrasion testing | Cycles according to material grade | Predicts surface durability during repeated handling |
Reinforcement Design and Stress Control
Cooler bags experience concentrated stress at handles, corners, bottom panels and zipper areas. Reinforcement structures distribute mechanical forces and reduce the possibility of premature failure.
- reinforced handle stitching improves carrying strength
- bottom reinforcement reduces abrasion damage
- corner reinforcement improves structural stability
- zipper reinforcement reduces opening area stress
Waterproof Cooler Bag Testing Methods and Quality Evaluation Before Bulk Production
Before bulk production, waterproof cooler bags should be evaluated through a combination of material testing, structural inspection and finished product performance verification. A professional quality evaluation system confirms whether the product can maintain waterproof protection, thermal performance and mechanical durability under actual usage conditions.
For sourcing teams, a structured Bag Sourcing Guide process helps define material specifications, testing requirements, inspection standards and production acceptance criteria before large-volume manufacturing.
Waterproof Material and Finished Product Leakage Testing
Waterproof evaluation should include both individual material testing and finished bag inspection. A waterproof fabric may provide good resistance against water penetration, but the final product can still fail if seams, zipper areas or assembly points are not properly controlled.
| Test Item | Testing Method | Typical Value / Condition | Engineering Meaning |
|---|---|---|---|
| Hydrostatic Pressure Resistance | Hydrostatic pressure testing | 1,500-10,000+ mmH₂O depending on material structure | Measures fabric resistance against external water pressure |
| Seam Leakage Test | Water exposure or controlled leakage inspection | Evaluated according to product requirement | Identifies weak points caused by stitching or assembly |
| Coating Adhesion Test | Coating adhesion evaluation | Measured according to coating specification | Verifies PVC or TPU coating stability during use |
| Inner Lining Leakage Test | Liquid retention inspection | Defined by product application | Confirms resistance against melted ice and internal moisture leakage |
Thermal Retention Performance Testing
Thermal retention testing evaluates how effectively the insulation structure slows temperature change over a defined period. The result depends on insulation material, thickness, lining structure, zipper sealing and external test conditions.
- initial internal temperature
- ambient temperature condition
- test duration
- insulation thickness
- internal loading condition
Mechanical Performance and Component Testing
Cooler bags experience repeated mechanical stress during transportation. Handles, zippers, seams and reinforcement areas should be evaluated before bulk production approval.
| Test Item | Testing Method | Typical Evaluation | Buyer Significance |
|---|---|---|---|
| Handle Strength Test | Static load testing | Load applied according to product specification | Verifies carrying reliability |
| Zipper Cycle Test | Repeated opening and closing cycles | Cycle count according to requirement | Evaluates closure durability |
| Seam Strength Test | Tensile testing of stitched areas | Measured in N | Confirms assembly strength |
| Dimensional Inspection | Measurement against approved sample | Length, width, height tolerance control | Ensures production consistency |
Waterproof Cooler Bag Failure Mechanism Analysis
| Failure Cause | Performance Impact | Prevention Method |
|---|---|---|
| PVC coating damage or insufficient coating thickness | Reduced waterproof protection and surface deterioration | Control coating specification and perform material inspection |
| Poor seam construction | Water penetration through needle holes or weak stitching areas | Optimize seam structure and reinforce critical areas |
| Insufficient insulation thickness | Reduced thermal retention performance | Select suitable insulation material and verify thickness consistency |
| Low-quality PEVA lining | Internal liquid leakage and cleaning difficulties | Evaluate lining thickness, material quality and assembly process |
| Weak zipper protection | Moisture entry through opening structure | Use suitable zipper systems and protective flap designs |
| Insufficient handle reinforcement | Handle separation under loading conditions | Apply reinforcement stitching and conduct load testing |
Application Engineering and OEM Development Requirements for Waterproof Cooler Bags
Waterproof cooler bag specifications should be selected according to application requirements rather than using one fixed material structure for every market. Food delivery, outdoor activities, retail programs and promotional applications require different combinations of waterproof protection, insulation performance, durability and customization capability.
OEM development of custom bags requires technical coordination between material selection, structural design, manufacturing process and quality control. Early specification confirmation helps manufacturers select suitable materials and avoid performance issues during mass production.
Application-Based Material Selection
| Application Scenario | Required Performance | Recommended Structure | Engineering Consideration |
|---|---|---|---|
| Food Delivery | Thermal retention, waterproof lining and easy cleaning | PVC coated polyester + PEVA lining + thicker insulation | Balances temperature control and daily handling durability |
| Outdoor Camping | Abrasion resistance and environmental protection | Nylon/polyester coated fabric + reinforced construction | Requires stronger resistance against outdoor conditions |
| Grocery Transportation | Capacity and carrying strength | Reinforced bottom structure + strong handle system | Supports repeated loading and transportation |
| Premium Cooler Product | Higher waterproof performance and appearance quality | TPU laminated fabric + advanced component system | Suitable for higher-end outdoor applications |
OEM Development Parameters for Bulk Production
Before starting bulk production, buyers should confirm the following technical specifications:
- outer fabric type and denier specification
- PVC coating or lamination requirement
- insulation material type and thickness
- inner lining material selection
- waterproof performance target
- product dimensions and capacity
- handle and reinforcement requirements
- printing and customization method
- packing specifications
Sustainable Material Considerations
Sustainability requirements are influencing cooler bag development through the increasing use of recycled polyester fabrics, RPET materials and reusable product structures. However, sustainable material selection should still be evaluated through mechanical performance, waterproof capability and product lifespan.
For buyers developing long-term product programs, material selection should balance environmental targets with durability, cleaning performance and manufacturing consistency.
Frequently Asked Questions
1. Which waterproof material is most commonly used for cooler bag manufacturing?
Commercial cooler bags commonly use PVC coated polyester because it provides a balance between waterproof protection, abrasion resistance and production cost. Other solutions such as PVC laminated fabric and TPU laminated fabric are selected when higher waterproof performance or flexibility is required. Buyers should evaluate coating structure, fabric density, lining material and finished product testing rather than choosing based only on material name.
2. Does waterproof fabric alone prevent cooler bag leakage?
Waterproof fabric is only one part of leakage prevention. Finished cooler bag performance also depends on seam construction, zipper protection, inner lining quality and manufacturing accuracy. A PVC coated fabric may resist external moisture, but poor stitching or weak assembly points can still create leakage risks. Buyers should evaluate the complete waterproof structure before bulk production.
3. How should buyers select insulation materials for different cooler bag applications?
Insulation selection depends on required thermal retention time, product weight target and application environment. EPE foam provides lightweight insulation, while EVA foam offers higher density and structural support. Buyers should evaluate insulation thickness, material density, internal lining structure and thermal retention testing results to select a suitable solution for food delivery, outdoor use or retail applications.
4. What manufacturing factors influence waterproof cooler bag quality?
Manufacturing consistency depends on material inspection, cutting accuracy, stitching control, reinforcement design and functional testing. Important factors include PVC coating uniformity, insulation layer positioning, seam strength and zipper installation quality. Professional buyers should evaluate production capability and quality control procedures because the final waterproof performance depends on the complete manufacturing process.
5. What specifications should brands confirm when developing custom waterproof cooler bags?
Brands should define product dimensions, capacity, fabric specification, insulation thickness, waterproof requirements, lining material, customization method and packaging requirements before development. Clear specifications allow manufacturers to evaluate suitable material combinations and production processes. Technical communication during the development stage helps reduce sampling adjustments and improves consistency during bulk manufacturing.
Request Waterproof Cooler Bag Specification Review
Submit your cooler bag specifications, application requirements or performance targets for technical review. Topmatched supports material evaluation, structural optimization, OEM customization and bulk production for waterproof cooler bag projects.
Review suitable material options and waterproof construction solutions based on your product requirements.
